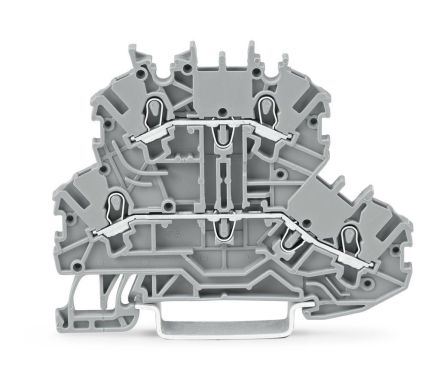

Wago 2000-2201 double-deck terminal

Wago 2000-2201 double-deck terminal

In stock

SKU: 519746

Price on request

€1.56

€0

Into a basketIn the basketGo

Overview

Double-level terminal, feed-through/feed-through terminal, L/L, without label holder, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 1.00 mm², gray

Property	Value
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.14 to 1.5 mm²
Connectable conductor cross-section, stranded:	0.14 to 1 mm²
Rated voltage:	500 V
Number of levels:	1
Number of terminal points per level:	2
Rated current In:	13.5 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.5 to 1.5 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.5 to 0.75 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	yes

Characteristics

HAB2000-2201

Minimal order50 pcs

Manufacturer

HAN2000-2201

GTIN4050821891703

Connectable conductor cross-section solid0.5 to 1.5 mm²

Connectable conductor cross-section stranded0.14 to 1 mm²

Rated voltage500V

Rated current In13.5A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
