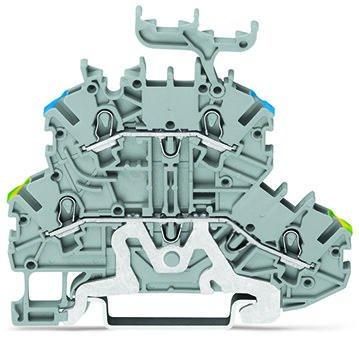

Wago 2000-2227 double-deck terminal

Wago 2000-2227 double-deck terminal

In stock

SKU: 521488

Price on request

€6.38

€0

Into a basketIn the basketGo

Overview

Double-deck terminal, shield conductor/through terminal, 1 mm², PE/L, without label carrier, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 1.00 mm², grey

Property	Value
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.5 to 1.5 mm²
Connectable conductor cross-section, stranded:	0.14 to 1 mm²
Connectable conductor cross-section, stranded without Wire end ferrule:	0.14 to 1.5 mm²
Connectable conductor cross-section, finely stranded with wire end ferrule:	0.5 to 0.75 mm²
PEN function possible:	yes
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of levels:	1
Number of terminal points per level:	2
Color:	other
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic

Characteristics

HAB2000-2227

Minimal order50 pcs

Manufacturer

HAN2000-2227

GTIN4055143274111

Connectable conductor cross-section solid0.5 to 1.5 mm²

Connectable conductor cross-section stranded0.14 to 1 mm²

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
