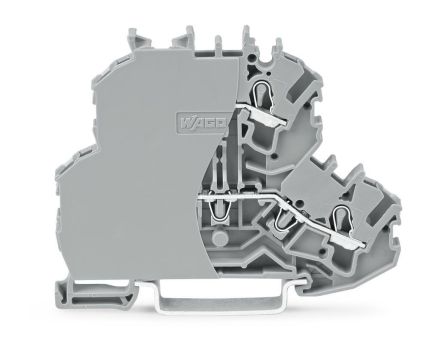

Wago 2002-2201/099-000 double-deck terminal

In stock

SKU: 521513

Price on request

€2.50

€0

Overview

Double-deck terminal, feed-through/feed-through terminal, with end plate, L/L, without label holder, for mounting rail 35 x 15 and 35 x 7, 5, 2, 5 mm², Push-in CAGE CLAMP®, 2, 50 mm², gray

Property	Value
Connection position:	top
Width/grid dimension:	6.2 mm
Length:	70 mm
Height with lowest mounting type:	52 mm
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, multi-stranded:	0.25 to 2.5 mm²
Rated voltage:	800 V
Number of levels:	2
Number of terminal points per level:	2
Rated current In:	24 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.75 to 2.5 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	Top hat rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Levels bridged internally:	yes
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	no
