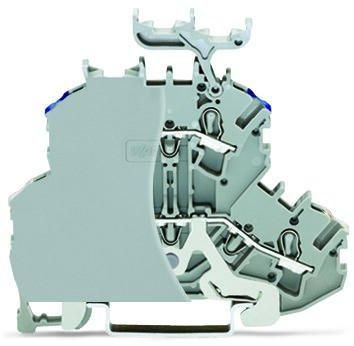

Wago 2002-2218/099-000 double-deck terminal

In stock

SKU: 521526

Price on request

€5.88

€0

Overview

Double-deck terminal, shield conductor/through terminal, with end plate, 2.5 mm², shielding/N, without label carrier, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 2.50 mm², gray

Property	Value
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, stranded:	0.25 to 2.5 mm²
Connectable conductor cross-section, fine-strand without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, finely stranded with wire end ferrule:	0.75 to 2.5 mm²
PEN function possible:	yes
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of levels:	1
Number of terminal points per level:	2
Color:	other
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Material of the insulating body:	Thermoplastic
