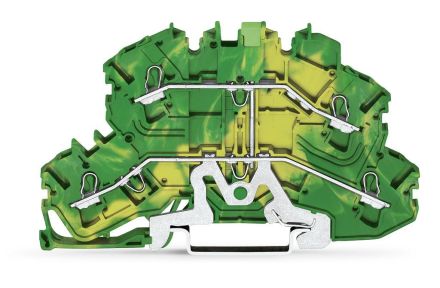

Wago 2002-2607 double-deck terminal

In stock

SKU: 521548

Price on request

€7.36

€0

Overview

Double-deck terminal, 4-conductor protective conductor terminal, same contour as double-deck disconnect terminal, 2.5 mm², PE, internally bridged, without label carrier, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 2.50 mm², green-yellow

Property	Value
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, multi-wire:	0.25 to 2.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.75 to 2.5 mm²
PEN function possible:	no
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of levels:	2
Number of terminal points per Floor:	2
Color:	green/yellow
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
