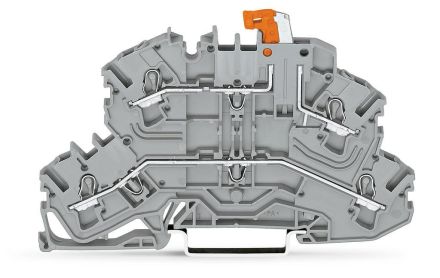

Wago 2002-2671 double-deck disconnect terminal

In stock

SKU: 519828

Price on request

€3.29

€0

Overview

Double-level isolating terminal, with pivoting isolating blade, L/L, for mounting rail 35 x 15 and 35 x 7, 5, 2.5 mm², Push-in CAGE CLAMP®, 2.50 mm², gray

Property	Value
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, stranded:	0.25 to 2.5 mm²
Connectable conductor cross-section, stranded without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, finely stranded with wire end ferrule:	0.75 to 2.5 mm²
Rated current In:	16 A
Operating temperature:	105 °C
Rated voltage:	400 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	2
Number of terminal points per level:	2
Levels bridged internally:	no
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Color:	gray
Design of the longitudinal separation:	without
Design of the transverse separation:	without
With integrated test socket:	no
Material of the insulating body:	Thermoplastic
