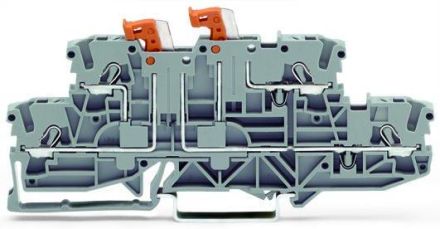

Wago 2002-2951 TOPJOB 2.5 (4) mm L/L grey double-deck terminal

In stock

SKU: 519001

Price on request

€9.10

€0

Overview

Double-deck double disconnect terminal, with 2 pivoting disconnect blades, L/L, for mounting rail 35 x 15 and 35 x 7, 5, 2.5 mm², Push-in CAGE CLAMP®, 2.50 mm², gray

Property	Value
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, stranded:	0.25 to 2.5 mm²
Connectable conductor cross-section, stranded without wire end ferrule:	0.25 to 2.5 mm²
Connectable conductor cross-section, finely stranded with wire end ferrule:	0.75 to 2.5 mm²
Rated current In:	16 A
Operating temperature:	105 °C
Connection position:	top
Rated voltage:	400 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Number of terminal points per level:	2
Levels bridged internally:	yes
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Color:	gray
Design of the longitudinal separation:	without
Design of the cross-separation:	without
With integrated test socket:	no
Material of the insulating body:	Thermoplastic
