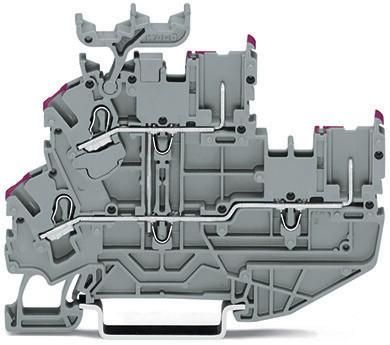

Wago 2022-2208/999-953 double-deck terminal

In stock

SKU: 807310

Price on request

€4.13

€0

Overview

2-conductor/2-pin double-level base terminal, 2-conductor/2-pin feed-through terminal, 2.5 mm², L, internally bridged, conductor entry printed in violet, suitable for Ex nA applications, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 2.50 mm², gray

Property	Value
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, stranded:	0.25 to 2.5 mm²
Rated voltage:	630 V
Number of levels:	2
Number of terminal points per level:	2
Rated current In:	20 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.75 to 2.5 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Plug-in connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	yes
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	yes
