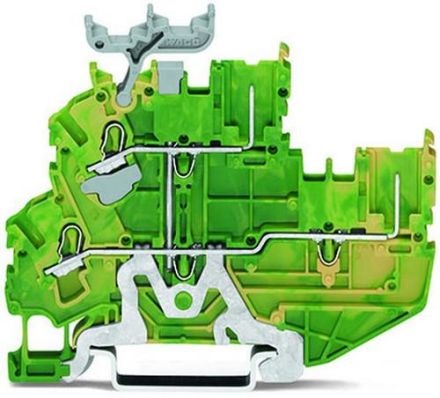

Wago 2022-2237/999-953 double-deck terminal

In stock

SKU: 807317

Price on request

€9.35

€0

Overview

2-conductor/2-pin double-level base terminal, 2-conductor/2-pin protective conductor terminal, 2.5 mm², PE, suitable for Ex nA applications, internally bridged, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 2.50 mm², green-yellow

Property	Value
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, multi-wire:	0.25 to 2.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.75 to 2.5 mm²
PEN function possible:	yes
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	plug-in connection
Number of levels:	2
Number of terminal points per Floor:	2
Color:	green/yellow
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
