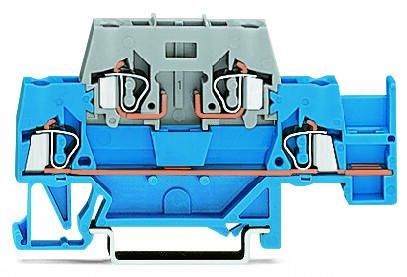

Wago 280-532 double-deck terminal

Wago 280-532 double-deck terminal

In stock

SKU: 521461

Price on request

€4.30

€0

Into a basketIn the basketGo

Overview

Double-deck terminal, with additional cross-bridging on the ground floor, for mounting rail 35 x 15 and 35 x 7, 5, 2.5 mm², CAGE CLAMP®, 2.50 mm², blue/grey

Property	Value
Colour:	multi-coloured
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded:	0.08 to 2.5 mm²
Rated voltage:	400 V
Number of levels:	2
Number of terminal points per level:	2
Rated current In:	10 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.25 to 1.5 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	no

Characteristics

HAB280-532

Minimal order50 pcs

Manufacturer

HAN280-532

GTIN4050821293682

Connectable conductor cross-section solid0.08 to 2.5 mm²

Connectable conductor cross-section stranded0.08 to 2.5 mm²

Rated voltage400V

Rated current In10A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
