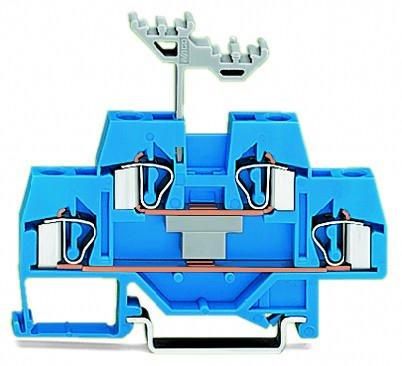

Wago 281-629 double-deck terminal

Wago 281-629 double-deck terminal

In stock

SKU: 521469

Price on request

€3.29

€0

Into a basketIn the basketGo

Overview

Double-level terminal, feed-through/feed-through terminal, suitable for Ex i applications, for mounting rail 35 x 15 and 35 x 7, 5, 4 mm², 4, 00 mm², blue

Property	Value
Color:	blue
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.08 to 4 mm²
Connectable conductor cross-section, stranded:	0.08 to 4 mm²
Rated voltage:	500 V
Number of levels:	2
Number of terminal points per level:	2
Rated current In:	26 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.08 to 4 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.25 to 2.5 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	Top hat rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	yes

Characteristics

HAB281-629

Minimal order50 pcs

Manufacturer

HAN281-629

GTIN4050821703501

Connectable conductor cross-section solid0.08 to 4 mm²

Connectable conductor cross-section stranded0.08 to 4 mm²

Rated voltage500V

Rated current In26A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
