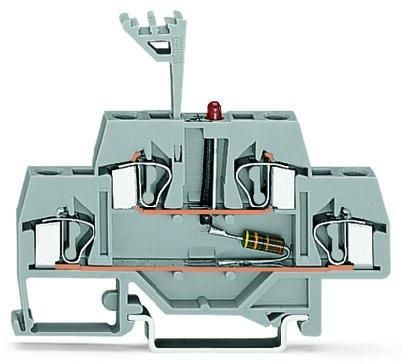

Wago 281-634/281-413 double-deck LED terminal

In stock

SKU: 521555

Price on request

€8.61

€0

Overview

Component terminal, double-deck, LED red, DC 24 V, for mounting rail 35 x 15 and 35 x 7, 5, 4 mm², CAGE CLAMP®, 4, 00 mm², grey

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 4 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.25 to 2.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.08 to 4 mm²
Connectable Conductor cross-section stranded:	0.08 to 4 mm²
Rated current In:	0.025 A
Operating temperature:	105 °C
Rated voltage:	24 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	2
Number of terminal points per Level:	2
Levels internally bridged:	no
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Color:	gray
Component type:	LED
Explosion-tested version 'Ex e':	no
Material of the insulating body:	Thermoplastic
