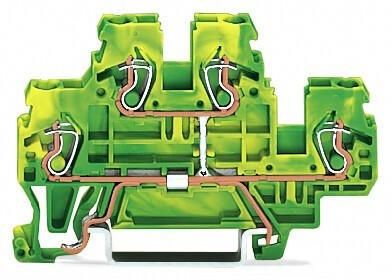

Wago 870-507 PE green-yellow double-deck terminal

In stock

SKU: 519008

Price on request

€4.06

€0

Overview

Double-deck terminal, 4-conductor protective conductor terminal, 2.5 mm², PE, without label carrier, internally bridged, for mounting rail 35 x 15 and 35 x 7.5, CAGE CLAMP®, 2.50 mm², green-yellow

Property	Value
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, multi-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section fine-stranded without wire end ferrule:	0.08 to 4 mm²
Connectable conductor cross-section fine-stranded with wire end ferrule:	0.25 to 2.5 mm²
PEN function possible:	yes
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of levels:	2
Number of terminal points per level:	2
Color:	green/yellow
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
