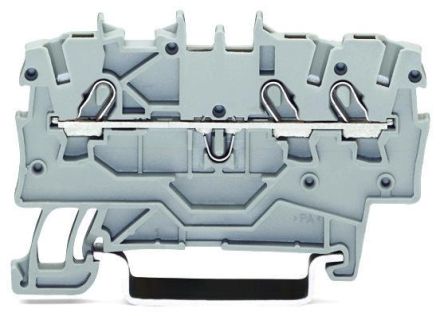

Wago 2000-1305 3-wire feed-through terminal

Wago 2000-1305 3-wire feed-through terminal

In stock

SKU: 520549

Price on request

€0.95

€0

Into a basketIn the basketGo

Overview

3-conductor feed-through terminal, 1 mm², suitable for Ex e II applications, side and center labeling, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 1.00 mm², black

Property	Value
Color:	black
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.14 to 1.5 mm²
Connectable conductor cross-section, stranded:	0.14 to 1 mm²
Rated voltage:	800 V
Number of levels:	1
Number of terminal points per level:	3
Rated current In:	13.5 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.5 to 1.5 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.5 to 0.75 mm²
Electrical design Connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	Top hat rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	yes

Characteristics

HAB3 conductors

Minimal order100 pcs

Manufacturer

HAN2000-1305

GTIN4045454966881

Connectable conductor cross-section solid0.5 to 1.5 mm²

Connectable conductor cross-section stranded0.14 to 1 mm²

Rated voltage800V

Rated current In13.5A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
