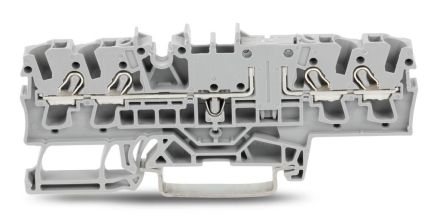

Wago 2002-1801 TOPJOB 2.5 (4) mm grey 4 conductor feed-through terminal

In stock

SKU: 520202

Price on request

€3.36

€0

Overview

4-conductor feed-through terminal, 2.5 mm², with testing option, same contour as 4-conductor disconnect terminal, side and center labeling, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 2.50 mm², gray

Property	Value
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, stranded:	0.25 to 2.5 mm²
Rated voltage:	400 V
Number of levels:	1
Number of terminal points per level:	4
Rated current In:	16 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.75 to 2.5 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	yes
