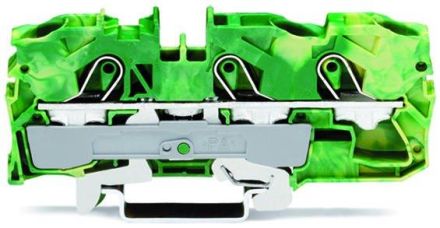

Wago 2010-1307 3-wire 10qmm green-yellow feed-through terminal

In stock

SKU: 518450

Price on request

€4.70

€0

Overview

3-conductor protective conductor terminal, 10 mm², suitable for Ex e II applications, side and center labeling, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 10.00 mm², green-yellow

Property	Value
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	2.5 to 16 mm²
Connectable conductor cross-section, stranded:	0.5 to 10 mm²
Connectable conductor cross-section, stranded without Wire end ferrule:	0.5 to 16 mm²
Connectable conductor cross-section, finely stranded with wire end ferrule:	2.5 to 10 mm²
PEN function possible:	yes
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of levels:	1
Number of terminal points per level:	3
Color:	green/yellow
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
