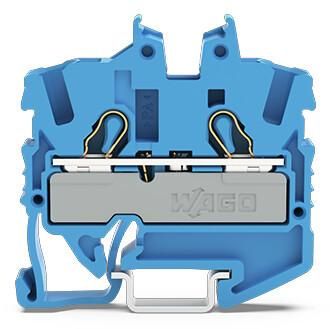

Wago 2052-1204 Mini Push-in CAGE CLAMP 2.50qmm blue 2 conductor feed-through terminal

Wago 2052-1204 Mini Push-in CAGE CLAMP 2.50qmm blue 2 conductor feed-through terminal

In stock

SKU: 834254

Price on request

€1.02

€0

Into a basketIn the basketGo

Overview

2-conductor mini feed-through terminal, with actuation opening, 2.5 mm², with test opening, side and center labeling, for DIN rail 15, Push-in CAGE CLAMP®, 2.50 mm², blue

Property	Value
Color:	blue
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, stranded:	0.25 to 2.5 mm²
Rated voltage:	800 V
Number of levels:	1
Number of terminal points per level:	2
Rated current In:	24 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.75 to 2.5 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	yes

Characteristics

HABMini Push-in CAGE CLAMP 2.50qmm blue

Manufacturer

HAN2052-1204

GTIN4055144094503

Connectable conductor cross-section solid0.75 to 4 mm²

Connectable conductor cross-section stranded0.25 to 2.5 mm²

Rated voltage800V

Rated current In24A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
