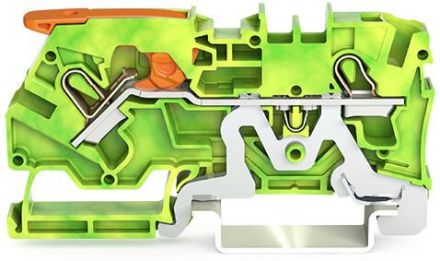

Wago 2104-1207 2.5qmm green-yellow 2-wire through terminal

In stock

SKU: 769410

Price on request

€4.66

€0

Overview

2-conductor protective conductor terminal, with lever and Push-in CAGE CLAMP®, 4 mm², with test opening, side and center labeling, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 4.00 mm², green-yellow

Property	Value
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	1 to 6 mm²
Connectable conductor cross-section, stranded:	0.5 to 4 mm²
Connectable conductor cross-section, stranded without Wire end ferrule:	0.5 to 6 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.75 to 4 mm²
PEN function possible:	yes
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of levels:	1
Number of terminal points per level:	2
Color:	green/yellow
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
