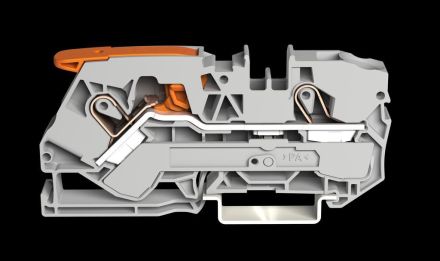

Wago 2110-1201 lever and push-in CAGE CLAMP 10qmm grey 2 conductor feed-through terminal

Wago 2110-1201 lever and push-in CAGE CLAMP 10qmm grey 2 conductor feed-through terminal

In stock

SKU: 524704

Price on request

€3.61

€0

Into a basketIn the basketGo

Overview

2-conductor feed-through terminal, with lever and Push-in CAGE CLAMP®, 10 mm², with test opening, side and center labeling, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 10.00 mm², gray

Property	Value
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.5 to 16 mm²
Connectable conductor cross-section, stranded:	0.5 to 16 mm²
Rated voltage:	800 V
Number of levels:	1
Number of terminal points per level:	2
Rated current In:	57 A
Operating temperature:	110 °C
Connectable conductor cross-section, single-wire:	4 to 16 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	4 to 10 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	yes

Characteristics

HABLever and Push-in CAGE CLAMP 10qmm grey

Minimal order25 pcs

Manufacturer

HAN2110-1201

GTIN4055143865180

Connectable conductor cross-section solid4 to 16 mm²

Connectable conductor cross-section stranded0.5 to 16 mm²

Rated voltage800V

Rated current In57 A

Operating temperatur110°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
