Wago 2116-1304 terminal block 0.5-16qmm 1 level 3kl bl

In stock

SKU: 524462

Price on request

€4.66

€0

Overview

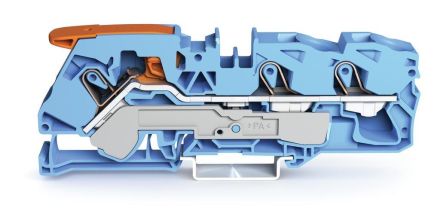

3-conductor feed-through terminal, with lever and Push-in CAGE CLAMP®, 16 mm², with test opening, suitable for Ex i applications, side and center labeling, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 16.00 mm², blue

Property	Value
Color:	blue
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.5 to 25 mm²
Connectable conductor cross-section, stranded:	0.5 to 16 mm²
Rated voltage:	800 V
Number of levels:	1
Number of terminal points per level:	3
Rated current In:	76 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	2.5 to 16 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	6 to 16 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	yes
