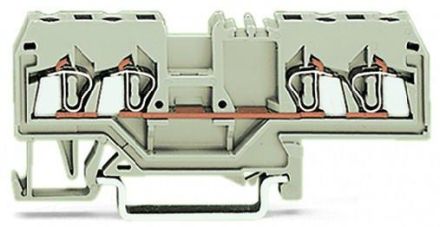

Wago 280-999 terminal block 0.08-2.5qmm series 280

Wago 280-999 terminal block 0.08-2.5qmm series 280

In stock

SKU: 520682

Price on request

€2.19

€0

Into a basketIn the basketGo

Overview

4-conductor feed-through terminal, 2.5 mm², suitable for Ex e II applications, central labeling, for mounting rail 35 x 15 and 35 x 7.5, CAGE CLAMP®, 2.50 mm², light gray

Property	Value
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.2 to 1.5 mm²
Connectable conductor cross-section, stranded:	0.2 to 1.5 mm²
Rated voltage:	550 V
Number of levels:	1
Number of terminal points per level:	4
Rated current In:	20 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.2 to 1.5 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.25 to 1 mm²
Design of electrical connection 1:	Spring-loaded connection
Electrical connection design 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	yes

Characteristics

HAB4-wire Ex e II

Minimal order100 pcs

Manufacturer

HAN280-999

GTIN4044918311502

Connectable conductor cross-section solid0.2 to 1.5 mm²

Connectable conductor cross-section stranded0.2 to 1.5 mm²

Rated voltage550V

Rated current In20A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
