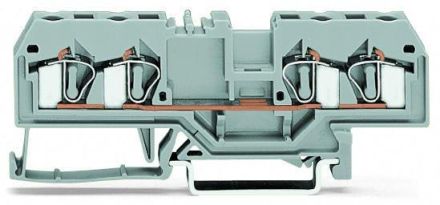

Wago 281-652 grey 4 conductor feed-through terminal

Wago 281-652 grey 4 conductor feed-through terminal

In stock

SKU: 518683

Price on request

€1.66

€0

Into a basketIn the basketGo

Overview

4-conductor feed-through terminal, 4 mm², center labeling, for mounting rail 35 x 15 and 35 x 7.5, CAGE CLAMP®, 4.00 mm², gray

Property	Value
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.08 to 4 mm²
Connectable conductor cross-section, stranded:	0.08 to 4 mm²
Rated voltage:	800 V
Number of levels:	1
Number of terminal points per level:	4
Rated current In:	26 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.08 to 4 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	no

Characteristics

HAB281-652 grey

Minimal order50 pcs

Manufacturer

HAN281-652

GTIN4044918486354

Connectable conductor cross-section solid0.08 to 4 mm²

Connectable conductor cross-section stranded0.08 to 4 mm²

Rated voltage800V

Rated current In26A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
