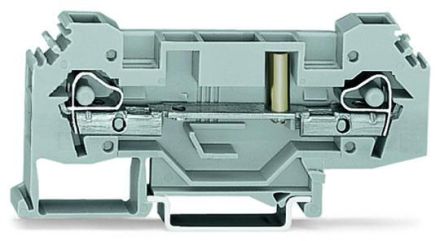

Wago 282-133 feed-through terminal

In stock

SKU: 521602

Price on request

€3.65

€0

Overview

2-conductor feed-through terminal, 6 mm², with test option, for test plug Ø 4 mm, same contour as 2-conductor disconnect terminal, side label holders, for mounting rail 35 x 15 and 35 x 7.5, CAGE CLAMP®, 6.00 mm², gray

Property	Value
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.2 to 6 mm²
Connectable conductor cross-section, stranded:	0.2 to 6 mm²
Rated voltage:	400 V
Number of levels:	1
Number of terminal points per level:	2
Rated current In:	41 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.2 to 6 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	Top hat rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	no
