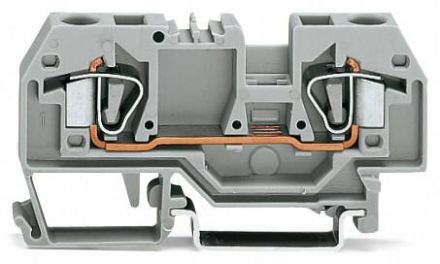

Wago 282-902 terminal block 0.2-6qmm series 282 1 level

Wago 282-902 terminal block 0.2-6qmm series 282 1 level

In stock

SKU: 520372

Price on request

€3.29

€0

Into a basketIn the basketGo

Overview

2-conductor feed-through terminal, 6 mm², center labeling, for mounting rail 35 x 15 and 35 x 7.5, CAGE CLAMP®, 6.00 mm², orange

Property	Value
Color:	orange
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.2 to 6 mm²
Connectable conductor cross-section, stranded:	0.2 to 6 mm²
Rated voltage:	800 V
Number of levels:	1
Number of terminal points per level:	2
Rated current In:	41 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.2 to 6 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	no

Characteristics

HAB2 conductors

Minimal order50 pcs

Manufacturer

HAN282-902

GTIN4044918445849

Connectable conductor cross-section solid0.2 to 6 mm²

Connectable conductor cross-section stranded0.2 to 6 mm²

Rated voltage800V

Rated current In41 A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
