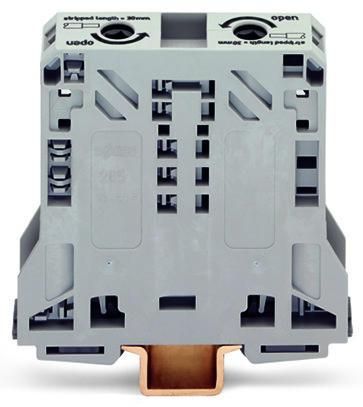

Wago 285-150 50qmm grey 2 conductor feed-through terminal

Wago 285-150 50qmm grey 2 conductor feed-through terminal

In stock

SKU: 518549

Price on request

€12.94

€0

Into a basketIn the basketGo

Overview

2-conductor feed-through terminal 50 mm side label holders only on mounting rail 35 x 15 2.3 mm thick copper POWER CAGE CLAMP gray

Property	Value
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	10 to 70 mm²
Connectable conductor cross-section, stranded:	10 to 50 mm²
Rated voltage:	1000 V
Number of levels:	1
Number of terminal points per level:	2
Rated current In:	150 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	10 to 50 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	10 to 50 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	Top hat rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	no

Characteristics

HAB285-150 50qmm grey

Manufacturer

HAN285-150

GTIN4045454507411

Connectable conductor cross-section solid10 to 50 mm²

Connectable conductor cross-section stranded10 to 50 mm²

Rated voltage1000V

Rated current In150A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
