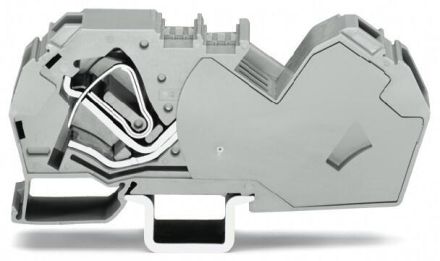

Wago 785-601 35qmm grey 2 conductor feed-through terminal

Wago 785-601 35qmm grey 2 conductor feed-through terminal

In stock

SKU: 518531

Price on request

€8.65

€0

Into a basketIn the basketGo

Overview

2-conductor feed-through terminal, 35 mm², with integrated end plate, side and center labeling, for mounting rail 35 x 15 and 35 x 7.5, CAGE CLAMP®, 35.00 mm², gray

Property	Value
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	6 to 35 mm²
Connectable conductor cross-section, stranded:	6 to 35 mm²
Rated voltage:	1000 V
Number of levels:	1
Number of terminal points per level:	2
Rated current In:	125 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	6 to 35 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic

Characteristics

HAB785-601 35qmm grey

Manufacturer

HAN785-601

GTIN4045454400576

Connectable conductor cross-section solid6 to 35 mm²

Connectable conductor cross-section stranded6 to 35 mm²

Rated voltage1000V

Rated current In125A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
