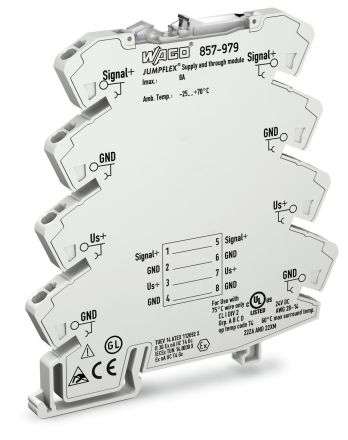

Wago 857-979 feed-in and feed-through terminal

In stock

SKU: 520139

Price on request

€33.78

€0

Overview

Feed-in and feed-through terminal, light gray

Property	Value
Connection position:	top
Width/grid dimension:	6 mm
Length:	94 mm
Height with lowest mounting type:	96 mm
Color:	gray
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.34 to 2.5 mm²
Number of levels:	4
Number of terminal points per level:	2
Rated current In:	8 A
Operating temperature:	-25 to 70 °C
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Levels bridged internally:	no
Material of the insulating body:	Thermoplastic
Explosion-tested version 'Ex e':	no
