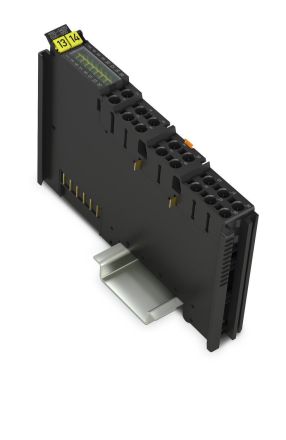

Wago 750-1405/040-000 Digital I/O Module DC Series 750 24V

Wago 750-1405/040-000 Digital I/O Module DC Series 750 24V

In stock

SKU: 521610

Price on request

€231.27

€0

Into a basketIn the basketGo

Overview

16-channel digital input DC 24 V 3 ms extreme

Property	Value
Protection class (IP):	IP20
Type of supply voltage:	DC
Permissible voltage at input:	-3 to 30 V
Input current for signal 1:	2.3 mA
Width:	12 mm
Height:	100 mm
Depth:	69 mm
Drawer rail mounting possible:	yes
Wireless standard Bluetooth:	no
Type of digital output:	without
Wireless standard WLAN 802.11:	no
Supports protocol for INTERBUS:	no
Design of the electrical connection:	spring-loaded connection
Supports protocol for PROFIBUS:	no
Supports protocol for ASI:	no
Rack mounting possible:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIsafe:	no
Supports protocol for PROFINET CBA:	no
Supply voltage at DC:	24 V
Supports protocol for Data highway:	no
Supports protocol for SafetyBUS p:	no
IO-Link Master:	no
Supports protocol for MODBUS:	no
Wall/direct mounting possible:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for other bus systems:	no
Supports protocol for SERCOS:	no
Supports protocol for KNX:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for SUCONET:	no
Front installation possible:	no
Suitable for safety functions:	no
Supports protocol for TCP/IP:	no
Supports protocol for CAN:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for DeviceNet:	no
Supports protocol for AS-Interface Safety at Work:	no
Type of input voltage:	DC
Delay time for signal change:	3 ms
Short-circuit protection, outputs available:	no
Fieldbus connection possible via separate bus coupler:	yes
Supports protocol for LON:	no
Supports protocol for INTERBUS-Safety:	no
System component:	yes
With optical interface:	no
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Explosion protection category for gas:	ATEX gas explosion protection, cat. 3G
Explosion protection category for dust:	ATEX dust explosion protection, cat. 3D
Wireless standard GSM:	no
Number of digital inputs:	16
Digital inputs configurable:	no
Wireless standard GPRS:	no
Digital outputs configurable:	no
Wireless standard UMTS:	no

Characteristics

Type of voltage of the supply voltageDC

Supports protocol for KNXNo

With optical interfaceNo

HAB16 channel digital

Manufacturer

HAN750-1405/040-000

GTIN4050821460206

Design of the electrical connectionSpring-loaded connection

Width12 mm

Explosion protection category for gasATEX gas explosion protection, cat. 3G

Explosion protection category for dustATEX dust explosion protection, cat. 3D

Suitable for security functionsNo

Height100 mm

IP protection)IP20

Depth69 mm

Mounting rail possibleYes

Supports protocol for AS-Interface Safety at WorkNo

Supports protocol for ASINo

Supports protocol for CANNo

Supports data highway protocolNo

Supports protocol for DeviceNetNo

Supports protocol for DeviceNet SafetyNo

Supports protocol for EtherNet/IPNo

Supports protocol for Foundation FieldbusNo

Supports protocol for INTERBUSNo

Supports protocol for INTERBUS-SafetyNo

Supports protocol for LONNo

Supports protocol for ModbusNo

Supports protocol for PROFIBUSNo

Supports protocol for PROFINET CBANo

Supports protocol for PROFINET IONo

Supports protocol for PROFIsafeNo

Supports protocol for SERCOSNo

Supports protocol for SUCONETNo

Supports protocol for SafetyBUS pNo

Supports protocol for TCP/IPNo

Supports protocol for other bus systemsNo
