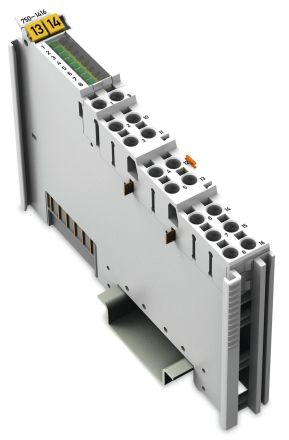

Wago 750-1416 Digital I/O Module DC Series 750 18-31.2V

Wago 750-1416 Digital I/O Module DC Series 750 18-31.2V

In stock

SKU: 521707

Price on request

€79.93

€0

Into a basketIn the basketGo

Overview

8-channel digital input DC 24 V 0.2 ms 2-wire connection light gray

Property	Value
Protection class (IP):	IP20
Type of supply voltage:	DC
Permissible voltage at input:	-3 to 30 V
Input current for signal 1:	4.5 mA
Width:	12 mm
Height:	100 mm
Depth:	69 mm
Mounting rail mounting possible:	yes
Wireless standard Bluetooth:	no
Type of digital output:	without
Wireless standard WLAN 802.11:	no
Supports protocol for INTERBUS:	no
Design of the electrical connection:	spring-loaded connection
Supports protocol for PROFIBUS:	no
Supports protocol for ASI:	no
Rack mounting possible:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIsafe:	no
Supports protocol for PROFINET CBA:	no
Supply voltage for DC:	24 V
Supports protocol for Data-Highway:	no
Supports protocol for SafetyBUS p:	no
IO-Link Master:	no
Supports protocol for MODBUS:	no
Wall/direct mounting possible:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for other bus systems:	no
Supports protocol for SERCOS:	no
Supports protocol for KNX:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for SUCONET:	no
Front installation possible:	no
Suitable for safety functions:	no
Supports protocol for TCP/IP:	no
Supports protocol for CAN:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for DeviceNet:	no
Supports protocol for AS-Interface Safety at Work:	no
Type of input voltage:	DC
Delay time for signal change:	0.2 ms
Short-circuit protection, outputs available:	no
Fieldbus connection possible via separate bus coupler:	yes
Supports protocol for LON:	no
Supports protocol for INTERBUS-Safety:	no
System component:	yes
With optical interface:	no
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Explosion protection category for gas:	ATEX gas explosion protection, cat. 3G
Explosion protection category for dust:	ATEX dust explosion protection, cat. 3D
Wireless standard GSM:	no
Number of digital inputs:	8
Digital inputs configurable:	no
Wireless standard GPRS:	no
Digital outputs configurable:	no
Wireless standard UMTS:	no
