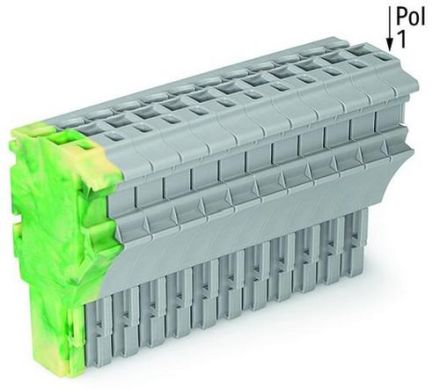

Wago 2022-112/000-037 2.5qmm 12-pin 2.50qmm gr-ge/grey 1 conductor female connector

Wago 2022-112/000-037 2.5qmm 12-pin 2.50qmm gr-ge/grey 1 conductor female connector

In stock

SKU: 807091

Price on request

€14.84

€0

Into a basketIn the basketGo

Overview

2022-112/000-037 2.5qmm 12-pin 2.50qmm gr-ge/grey 1 conductor female connector Manufacturer article number: 2022-112/000-037, Manufacturer article name: 2.5qmm 12-pin 2.50qmm gr-ge/grey

Property	Value
Number of poles:	12
Color:	multicolored
Rated voltage:	690 V
Material of the insulating body:	Thermoplastic
Rated current In:	24 A
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, stranded:	0.25 to 2.5 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.75 to 2.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.25 to 4 mm²
Mounting type:	other
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of terminal points per pole:	1
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Explosion-tested version 'Ex e':	no
Transparent:	no

Characteristics

HAB2.5qmm 12-pin 2.50qmm gr-ge/grey

Minimal order25 pcs

Manufacturer

HAN2022-112/000-037

GTIN4045454913076

Connectable conductor cross-section solid0.75 to 4 mm²

Connectable conductor cross-section stranded0.25 to 2.5 mm²

Rated voltage690V

Rated current In24A

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeOther

Number of poles12

TransparentNo
