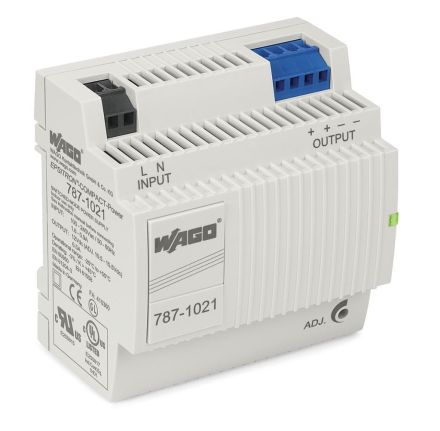

Wago 787-1021 Compact Power 12V 6.5A primary switched mode power supply

In stock

SKU: 519466

Price on request

€194.44

€0

Overview

Primary switch-mode power supply, compact, 1-phase, output voltage DC 12 V, output current 6.5 A, 2.50 mm²

Property	Value
1. Output voltage:	10.5 to 15.5 V
Type of supply voltage:	AC/DC
Max. Output current 1:	6.5 A
Output voltage adjustable:	yes
Rated supply voltage at AC 50 Hz:	85 to 264 V
Rated supply voltage at DC:	120 to 300 V
Rated supply voltage at AC 60 Hz:	85 to 264 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	spring-loaded connection
Output voltage regulated:	yes
Suitable for series installation:	no
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	90 mm
Height:	59 mm
Depth:	89 mm
Nominal output voltage 1:	12 V
Nominal output current 1:	6.5 A
Width in pitch units:	5
