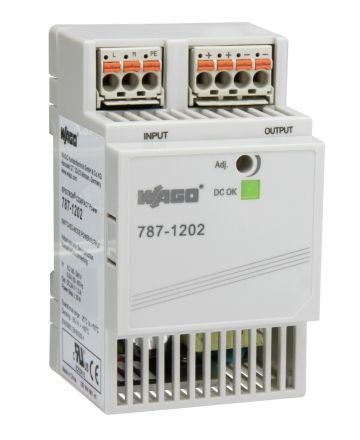

Wago 787-1202 1-phase DC 24V 1.3A primary switched mode power supply

In stock

SKU: 524347

Price on request

€39.89

€0

Overview

Primary switch-mode power supply, compact, 1-phase, output voltage DC 24 V, output current 1.3 A, DC-OK LED

Property	Value
1. Output voltage:	22 to 26 V
Type of supply voltage:	AC/DC
Max. Output current 1:	1.3 A
Output voltage adjustable:	yes
Rated supply voltage at AC 50 Hz:	85 to 264 V
Rated supply voltage at DC:	125 to 375 V
Rated supply voltage at AC 60 Hz:	85 to 264 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	spring-loaded connection
Output voltage regulated:	yes
Suitable for series installation:	no
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	54 mm
Height:	90 mm
Depth:	56 mm
Rated output voltage 1:	24 V
Rated output current 1:	1.3 A
Width in pitch units:	3
