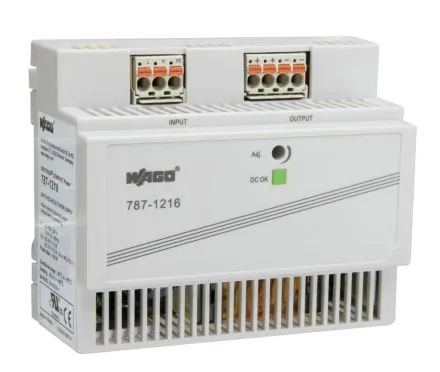

Primary switch-mode power supply, compact, 1-phase, output voltage DC 24 V, output current 4.2 A, DC-OK LED
| Property | Value |
| 1. Output voltage: | 22 to 26 V |
| Type of supply voltage: | AC/DC |
| Max. Output current 1: | 4.2 A |
| Output voltage adjustable: | yes |
| Rated supply voltage at AC 50 Hz: | 85 to 264 V |
| Rated supply voltage at DC: | 125 to 375 V |
| Rated supply voltage at AC 60 Hz: | 85 to 264 V |
| Short-circuit proof: | yes |
| Stabilized: | yes |
| Suitable for safety functions: | no |
| Direct mounting possible: | no |
| Design of the electrical connection: | spring-loaded connection |
| Output voltage regulated: | yes |
| Suitable for series installation: | no |
| Rail mounting possible: | yes |
| Wall mounting possible: | no |
| Protection class (IP): | IP20 |
| Width: | 108 mm |
| Height: | 56 mm |
| Depth: | 90 mm |
| Rated output voltage 1: | 24 V |
| Rated output current 1: | 4.2 A |
| Width in pitch units: | 6 |
