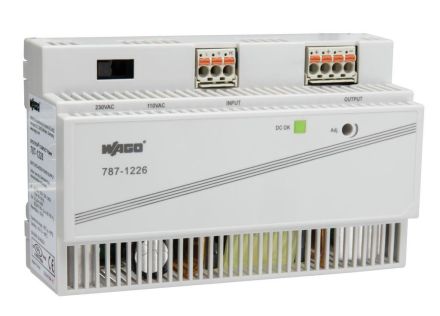

Wago 787-1226 DC power supply REG EPSITRON

In stock
SKU: 524350
€76.33
Into a basketIn the basketGo

Overview

Primary switch-mode power supply, compact, 1-phase, output voltage DC 24 V, output current 6 A, DC-OK LED

Property Value
1. Output voltage: 22 to 27 V
Type of supply voltage: AC/DC
Max. Output current 1: 6 A
Output voltage adjustable: yes
Rated supply voltage at AC 50 Hz: 180 to 264 V
Rated supply voltage at DC: 250 to 375 V
Rated supply voltage at AC 60 Hz: 90 to 132 V
Short-circuit proof: yes
Stabilized: yes
Suitable for safety functions: no
Direct mounting possible: no
Design of the electrical connection: spring-loaded connection
Output voltage regulated: yes
Suitable for series installation: no
Rail mounting possible: yes
Wall mounting possible: no
Protection class (IP): IP20
Width: 144 mm
Height: 56 mm
Depth: 90 mm
Rated output voltage 1: 24 V
Rated output current 1: 6 A
Width in pitch units: 8

Characteristics

Type of voltage of the supply voltageAC/DC
Rated supply voltage for DC250 to 375 V
Short circuit proofYes
HAB1phase DC 24V 6A primary switched
ManufacturerWago
HAN787-1226
GTIN4055143415040
Design of the electrical connectionSpring-loaded connection
Width144 mm
Width in pitch units8
Suitable for series installationNo
Suitable for security functionsNo
Height56 mm
IP protection)IP20
Depth90 mm
Mounting rail possibleYes
