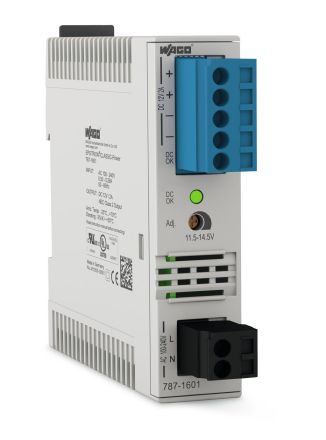

Wago 787-1601 Classic Power 12V 2A primary switched mode power supply

In stock

SKU: 520308

Price on request

€117.77

€0

Overview

Primary switch-mode power supply Classic 1-phase Output voltage DC 12 V Output current 2 A NEC Class 2 DC-OK signal

Property	Value
1. Output voltage:	11.5 to 14.5 V
Type of supply voltage:	AC/DC
Max. Output current 1:	2 A
Output voltage adjustable:	yes
Rated supply voltage at AC 50 Hz:	85 to 264 V
Rated supply voltage at DC:	120 to 300 V
Rated supply voltage at AC 60 Hz:	85 to 264 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	spring-loaded connection
Output voltage regulated:	yes
Suitable for series installation:	no
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	22.5 mm
Height:	90 mm
Depth:	107.5 mm
Nominal output voltage 1:	12 V
Nominal output current 1:	2 A
Width in pitch units:	1
