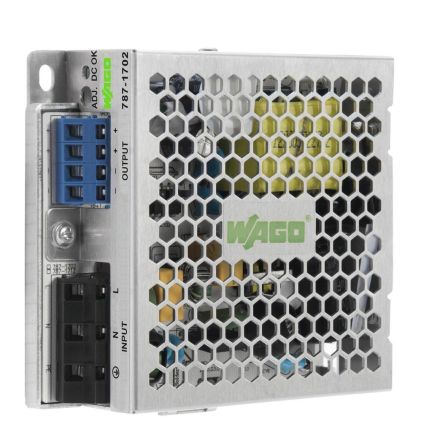

Wago 787-1702 DC power supply series 787 22-26V

In stock

SKU: 519935

Price on request

€30.35

€0

Overview

Primary switch-mode power supply, Eco, 1-phase, output voltage DC 24 V, output current 1.25 A, DC-OK LED

Property	Value
1. Output voltage:	22 to 26 V
Type of supply voltage:	AC/DC
Max. Output current 1:	1.25 A
Output voltage adjustable:	yes
Rated supply voltage at AC 50 Hz:	90 to 264 V
Rated supply voltage at DC:	125 to 375 V
Rated supply voltage at AC 60 Hz:	90 to 264 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	spring-loaded connection
Output voltage regulated:	yes
Suitable for series installation:	no
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	99 mm
Height:	90 mm
Depth:	30 mm
Rated output voltage 1:	24 V
Rated output current 1:	1.25 A
Width in pitch units:	6
