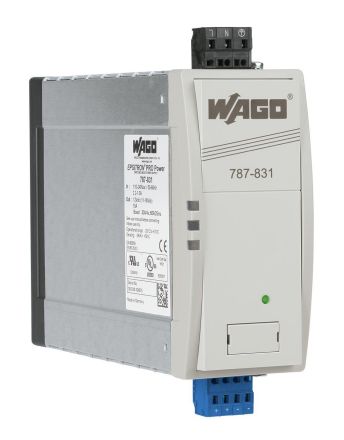

Wago 787-831 Epsitron PRO 230V / 12V 15A primary switched mode power supply

In stock

SKU: 520143

Price on request

€435.17

€0

Overview

Primary switch-mode power supply Pro 1-phase Output voltage DC 12 V Output current 15 A TopBoost + PowerBoost DC-OK contact

Property	Value
1. Output voltage:	11 to 18 V
Type of supply voltage:	AC/DC
Max. Output current 1:	15 A
Output voltage adjustable:	yes
Rated supply voltage at AC 50 Hz:	85 to 264 V
Rated supply voltage at DC:	120 to 300 V
Rated supply voltage at AC 60 Hz:	85 to 264 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	spring-loaded connection
Output voltage regulated:	yes
Suitable for series installation:	no
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	57 mm
Height:	163 mm
Depth:	179 mm
Nominal output voltage 1:	12 V
Nominal output current 1:	15 A
Width in pitch units:	3
