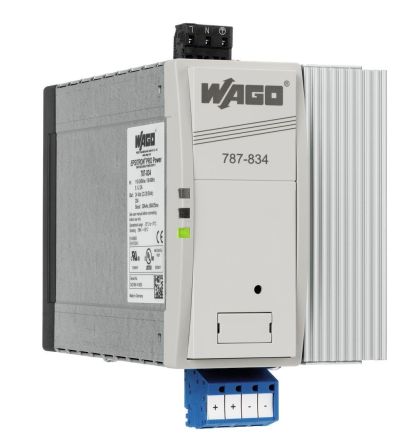

Wago 787-834 EPSITRON-PRO-Power 24VDC 20A primary switched power supply

In stock

SKU: 520041

Price on request

€511.42

€0

Overview

Primary switch-mode power supply, Pro, 1-phase, output voltage DC 24 V, output current 20 A, TopBoost + PowerBoost, DC-OK contact, 2.50 mm²

Property	Value
1. Output voltage:	22 to 29.5 V
Type of supply voltage:	AC/DC
Max. Output current 1:	20 A
Output voltage adjustable:	yes
Rated supply voltage at AC 50 Hz:	85 to 264 V
Rated supply voltage at DC:	120 to 300 V
Rated supply voltage at AC 60 Hz:	85 to 264 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	spring-loaded connection
Output voltage regulated:	yes
Suitable for series installation:	no
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	97 mm
Height:	171 mm
Depth:	187 mm
Nominal output voltage 1:	24 V
Nominal output current 1:	20 A
Width in pitch units:	6
