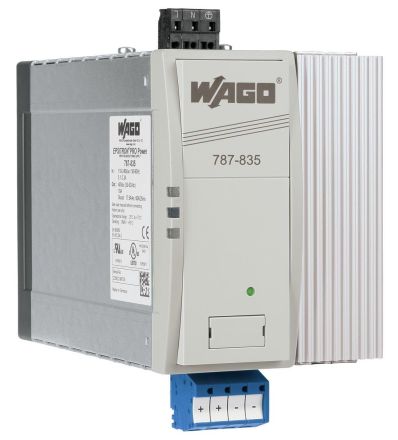

Wago 787-835 Epsitron 230V / 48V 10A primary switched mode power supply

In stock

SKU: 520146

Price on request

€595

€0

Overview

Primary switch-mode power supply Pro 1-phase Output voltage DC 48 V Output current 10 A TopBoost + PowerBoost DC-OK contact

Property	Value
1. Output voltage:	33 to 52 V
Type of supply voltage:	AC/DC
Max. Output current 1:	10 A
Output voltage adjustable:	yes
Rated supply voltage at AC 50 Hz:	85 to 264 V
Rated supply voltage at DC:	120 to 300 V
Rated supply voltage at AC 60 Hz:	85 to 264 V
Short-circuit proof:	yes
Stabilized:	yes
Suitable for safety functions:	no
Direct mounting possible:	no
Design of the electrical connection:	spring-loaded connection
Output voltage regulated:	yes
Suitable for series installation:	no
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Width:	97 mm
Height:	171 mm
Depth:	187 mm
Rated output voltage 1:	48 V
Rated output current 1:	10 A
Width in pitch units:	6
