Wago 2110-5207 10qmm green-yellow 2 conductor protective conductor terminal

In stock

SKU: 524712

Price on request

€5.24

€0

Overview

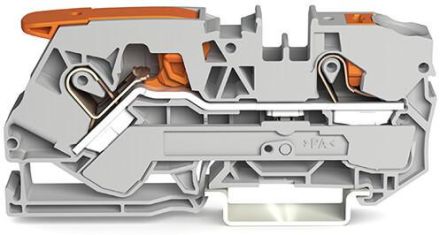

2-conductor protective conductor terminal with lever and push-button 10 mm with test opening, side and center labeling for mounting rail 35 x 15 and 35 x 7.5 Push-in CAGE CLAMP®

Property	Value
Width/grid dimension:	10 mm
Length:	89 mm
Height with lowest mounting type:	36.9 mm
Operating temperature:	110 °C
Connectable conductor cross-section, single-wire:	16 mm
Connectable conductor cross-section, stranded:	16 mm
Connectable conductor cross-section, fine-stranded without wire end ferrule:	16 mm
Connectable conductor cross-section, fine-stranded with wire end ferrule:	10 mm
Connection position:	top
PEN function possible:	no
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of levels:	1
Number of terminal points per level:	2
Color:	green/yellow
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
