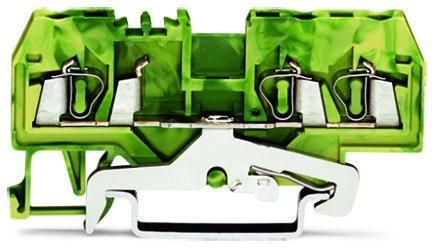

Wago 280-687 2.5qmm green-yellow 3 conductor protective conductor terminal

Wago 280-687 2.5qmm green-yellow 3 conductor protective conductor terminal

In stock

SKU: 518681

Price on request

€3.61

€0

Into a basketIn the basketGo

Overview

3-conductor protective conductor terminal, 2.5 mm², center labeling, for mounting rail 35 x 15 and 35 x 7.5, CAGE CLAMP®, 2.50 mm², green-yellow

Property	Value
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded without wire end ferrule:	0.08 to 2.5 mm²
PEN function possible:	yes
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of levels:	1
Number of terminal points per level:	3
Color:	green/yellow
Mounting type:	top hat rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic

Characteristics

HAB280-687 2.5qmm green-yellow

Manufacturer

HAN280-687

GTIN4045454100148

Connectable conductor cross-section solid0.08 to 2.5 mm²

Connectable conductor cross-section stranded0.08 to 2.5 mm²

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35

Wago 280-687 2.5qmm green-yellow 3 conductor protective conductor terminal

Wago 280-687 2.5qmm green-yellow 3 conductor protective conductor terminal

Price on request

€3.61

€0

Into a basketIn the basketGo
