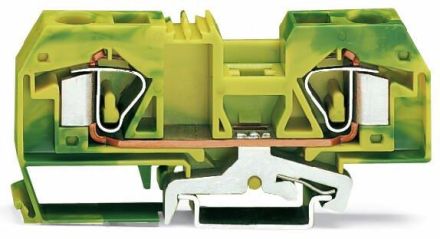

Wago 283-907/999-950 protective conductor terminal block series 283

In stock

SKU: 520431

Price on request

€6.76

€0

Overview

2-conductor protective conductor terminal, 16 mm², suitable for Ex e II applications, central labeling, for mounting rail 35 x 15 and 35 x 7.5, CAGE CLAMP®, 16.00 mm², green-yellow

Property	Value
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.2 to 16 mm²
Connectable conductor cross-section, stranded:	0.2 to 16 mm²
Connectable conductor cross-section, fine-stranded without Wire end ferrule:	0.2 to 16 mm²
PEN function possible:	yes
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of levels:	1
Number of terminal points per level:	2
Color:	green/yellow
Mounting type:	top hat rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
