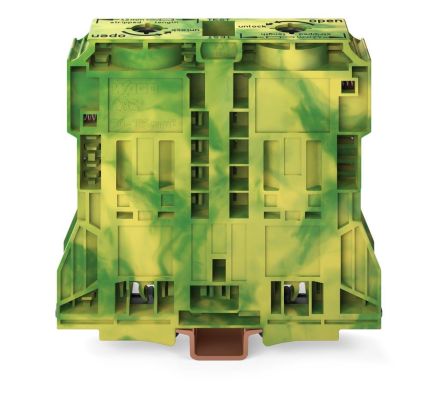

Wago 285-1187 green-yellow 185qmm 2 conductor protective conductor terminal

Wago 285-1187 green-yellow 185qmm 2 conductor protective conductor terminal

In stock

SKU: 519323

Price on request

€60.12

€0

Into a basketIn the basketGo

Overview

2-conductor protective conductor terminal, 120 mm², side label holders, only on mounting rail 35 x 15, 2.3 mm thick, copper, POWER CAGE CLAMP, 120.00 mm², green-yellow

Property	Value
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	50 to 185 mm²
Connectable conductor cross-section, stranded:	50 to 185 mm²
Connectable conductor cross-section, stranded without wire end ferrule:	50 to 185 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	50 to 185 mm²
PEN function possible:	yes
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Number of terminal points per level:	2
Color:	green/yellow
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	no
Material of the insulating body:	Thermoplastic

Characteristics

HAB285-1187 green-yellow 185qmm

Manufacturer

HAN285-1187

GTIN4055143067072

Connectable conductor cross-section solid50 to 185 mm²

Connectable conductor cross-section stranded50 to 185 mm²

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35

Wago 285-1187 green-yellow 185qmm 2 conductor protective conductor terminal

Wago 285-1187 green-yellow 185qmm 2 conductor protective conductor terminal

Price on request

€60.12

€0

Into a basketIn the basketGo
