Wago 2002-3212/1000-674 three-level diode terminal

In stock

SKU: 521584

Price on request

€14.63

€0

Overview

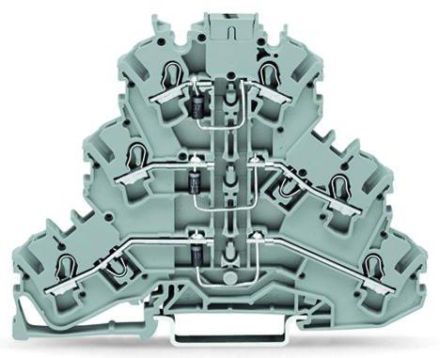

Component terminal, three-level, with 3 diodes 1N4007, anodes on the left, for mounting rail 35 x 15 and 35 x 7, 5, 2, 5 mm², Push-in CAGE CLAMP®, 2, 50 mm², grey

Property	Value
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.75 to 2.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, stranded:	0.25 to 2.5 mm²
Rated current In:	0.5 A
Operating temperature:	105 °C
Rated voltage:	250 V
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	3
Number of terminal points per level:	2
Levels bridged internally:	yes
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Color:	gray
Component type:	Diode
Explosion-tested version 'Ex e':	no
Material of the insulating body:	Thermoplastic
