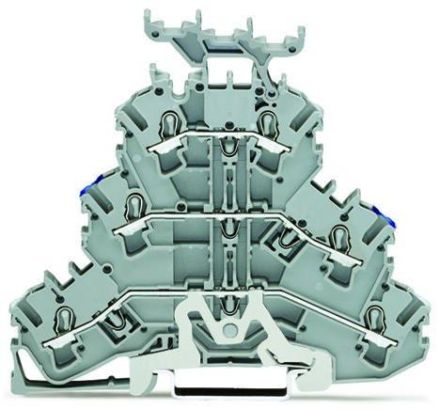

Wago 2002-3248 TOPJOB 2.5 (4) mm Schi/N/L grey three-level terminal

In stock

SKU: 519016

Price on request

€6.27

€0

Overview

Three-level terminal, shield conductor/through-connector/through-connector, 2.5 mm², shielding/N/L, with label holder, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 2.50 mm², grey

Property	Value
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, multi-wire:	0.25 to 2.5 mm²
Connectable conductor cross-section fine-stranded without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section fine-stranded with wire end ferrule:	0.75 to 2.5 mm²
PEN function possible:	yes
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of levels:	3
Number of terminal points per level:	2
Color:	other
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
