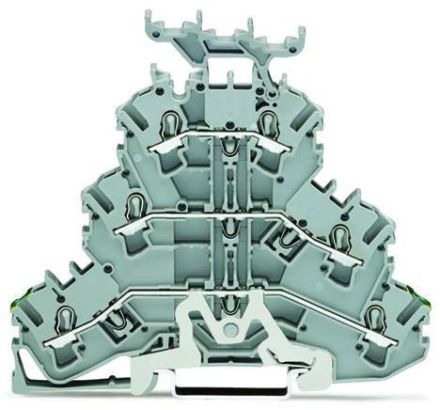

Wago 2002-3257 TOPJOB 2.5 (4) mm PE/L/L grey three-level terminal

In stock

SKU: 520201

Price on request

€6.27

€0

Overview

Three-level terminal, protective conductor/through-feed/through-feed terminal, 2.5 mm², PE/L/L, suitable for Ex e II applications, with label holder, for mounting rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP®, 2.50 mm², gray

Property	Value
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.75 to 4 mm²
Connectable conductor cross-section, stranded:	0.25 to 2.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.25 to 4 mm²
Connectable conductor cross-section, fine-stranded with wire end ferrule:	0.75 to 2.5 mm²
PEN function possible:	yes
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of levels:	3
Number of terminal points per level:	2
Color:	other
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic
