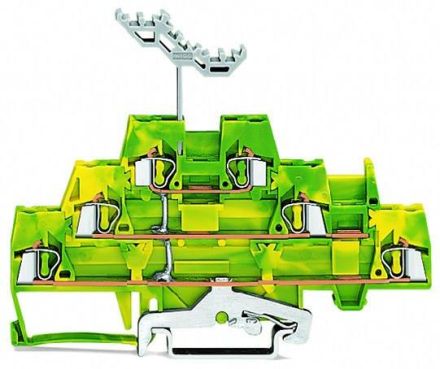

Wago 280-597 three-level terminal

Wago 280-597 three-level terminal

In stock

SKU: 521591

Price on request

€12.94

€0

Into a basketIn the basketGo

Overview

Three-level terminal, 6-conductor protective conductor terminal, 2.5 mm², with label carrier, internally bridged, for mounting rail 35 x 15 and 35 x 7.5, CAGE CLAMP®, 2.50 mm², green-yellow

Property	Value
Operating temperature:	105 °C
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded:	0.08 to 2.5 mm²
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, finely stranded with wire end ferrule:	0.25 to 1.5 mm²
PEN function possible:	no
Design of electrical connection 1:	spring-loaded connection
Design of electrical connection 2:	spring-loaded connection
Number of levels:	3
Number of terminal points per level:	2
Color:	green/yellow
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL 94:	V0
End plate required:	yes
Material of the insulating body:	Thermoplastic

Characteristics

HAB280-597

Minimal order40 pcs

Manufacturer

HAN280-597

GTIN4045454194628

Connectable conductor cross-section solid0.08 to 2.5 mm²

Connectable conductor cross-section stranded0.08 to 2.5 mm²

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35
