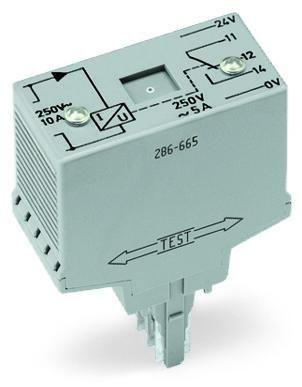

Wago 286-665 current flow monitoring module

Wago 286-665 current flow monitoring module

In stock

SKU: 522799

Price on request

€107.89

€0

Into a basketIn the basketGo

Overview

Current flow monitoring module, AC currents, monitoring range 1 A - 10 A, 1 changeover contact, light gray

Property	Value
Number of contacts as changeover contact:	1
Voltage type for actuation:	AC
Design of the electrical connection:	Spring-loaded connection
Width:	20 mm
Height:	70.2 mm
Depth:	50 mm
With removable terminals:	no
1-phase undercurrent possible:	yes
3-phase undercurrent possible:	no
1-phase overcurrent possible:	yes
3-phase overcurrent possible:	no
1-phase window possible:	yes
3-phase window possible:	no
Contains DC undercurrent function:	yes
Contains DC overcurrent function:	yes
DC window function:	yes
Current measuring range:	1 to 10 A
External current transformer:	no

Characteristics

HAB286-665

Manufacturer

HAN286-665

GTIN4050821254850

Number of contacts as changeover1

Design of the electrical connectionSpring-loaded connection

Width20 mm

Height70.2 mm

With removable clampsNo

Voltage type for actuationAC

Depth50 mm
