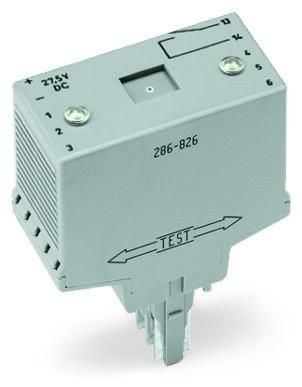

Wago 286-826 AND gate module

In stock

SKU: 523030

Price on request

€79.78

€0

Overview

AND gate module with 6 inputs, light gray

Property	Value
Supply voltage for DC:	24 V
Protection class (IP):	IP20
Switching current:	3 A
Height:	70.2 mm
Width:	25 mm
Depth:	50 mm
With relay output:	yes
Voltage type of supply voltage:	DC
Expandable:	no
With timer:	no
With display:	no
Wall/direct mounting possible:	no
Front installation possible:	no
Rail mounting possible:	no
Rack mounting possible:	no
Wireless standard Bluetooth:	no
Wireless standard WLAN 802.11:	no
Suitable for security functions:	no
Basic device:	yes
Extension device:	no
IO-Link Master:	no
With optical interface:	no
Supports protocol for SERCOS:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for PROFINET IO:	no
Supports protocol for INTERBUS:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for PROFIBUS:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for PROFIsafe:	no
Supports protocol for Data-Highway:	no
Supports protocol for DeviceNet:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for TCP/IP:	no
Supports protocol for other bus systems:	no
Supports protocol for MODBUS:	no
Supports protocol for SUCONET:	no
Supports protocol for CAN:	no
Supports protocol for ASI:	no
Supports protocol for PROFINET CBA:	no
Supports protocol for KNX:	no
Supports protocol for LON:	no
Supports protocol for Foundation Fieldbus:	no
Supports protocol for INTERBUS Safety:	no
Associated equipment (Ex ia):	no
Associated equipment (Ex ib):	no
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Redundancy capability:	no
Radio standard GPRS:	no
Radio standard GSM:	no
Wireless standard UMTS:	no
