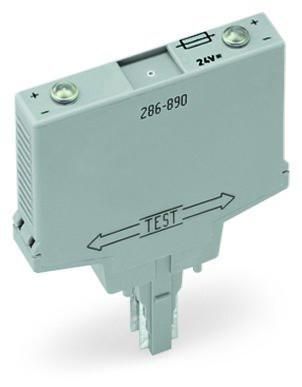

Wago 286-890 fuse module

In stock

SKU: 522608

Price on request

€29.68

€0

Into a basketIn the basketGo

Overview

Component module with fuse for fine fuse 5 x 20 mm nominal voltage AC/DC 24 V gray

Property	Value
Connectable conductor cross-section, single-wire:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded without wire end ferrule:	0.08 to 2.5 mm²
Connectable conductor cross-section, stranded with wire end ferrule:	0.25 to 1.5 mm²
Operating temperature:	105 °C
Design of the fuse insert:	G-fuse 5x20 mm
Design of the fuse holder:	plug-in
Type of display element for the defect display:	LED
Supply voltage for the defect display:	24 V
Type of voltage for the defect display:	AC/DC
Design of electrical connection 1:	Spring-loaded connection
Design of electrical connection 2:	Spring-loaded connection
Number of levels:	1
Mounting type:	DIN rail TH35
Color:	gray
End plate required:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the insulating body:	Thermoplastic

Characteristics

HAB286-890

Manufacturer

HAN286-890

GTIN4045454376451

Connectable conductor cross-section solid0.08 to 2.5 mm²

Connectable conductor cross-section stranded0.08 to 2.5 mm²

Operating temperatur105°C

Flammability class of the insulating material according to UL 94V0

Color

Mounting typeDIN rail TH35

Wago 286-890 fuse module

Wago 286-890 fuse module

Price on request

€29.68

€0

Into a basketIn the basketGo
